Wholesale,China Stainless Steel Welded Pipe Factory,Manufacturers,Supplier

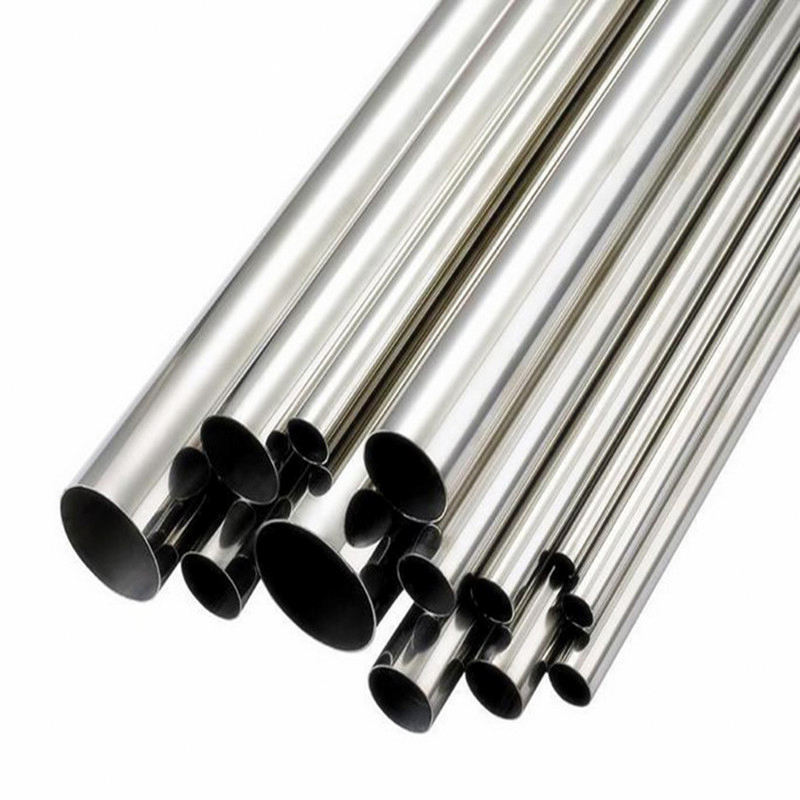

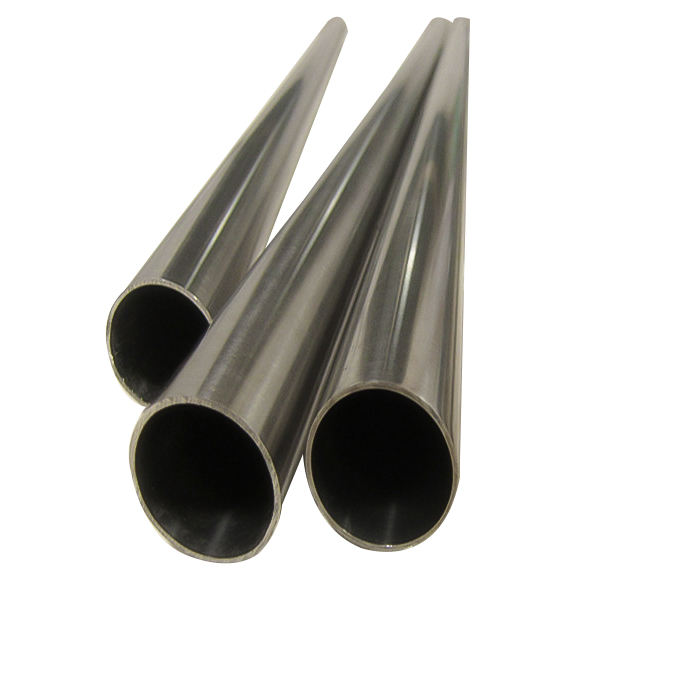

Stainless Steel Welded Pipe

Stainless Steel Welded Pipe: Stainless steel welded pipe, referred to as welded pipe, commonly used steel or steel strip after the unit and mold crimped forming welded steel pipe. Welded steel pipe production process is simple, high production efficiency, variety specifications, less equipment investment, but the general strength is lower than seamless steel pipe.

Details

Product Description

Stainless Steel Welded Pipe:

First, the small-caliber stainless steel welded pipe is continuous online production, the thicker the wall thickness, the greater the investment in the unit and the melting equipment, the less economical and practical it is. The thinner the wall thickness, the lower the input-output ratio; Secondly, the process of the product determines its advantages and disadvantages. Generally, the welding steel pipe has high precision, uniform wall thickness, high external brightness inside the pipe (the surface brightness of the steel pipe determined by the surface grade of the steel plate), and can be arbitrarily measured. Therefore, it reflects its economy and aesthetics in high precision, medium and low pressure fluid applications.

Surface

Product Parameter

Name	stainless Steel Seamless & Welded Tube &Pipe.
Standard	ASTM A554,A249,A269 and A270
Material Grade	201: Ni 0.8%~1%
	202: Ni 3.5%~4.5%
	304: Ni 8%, Cr 18%
	316: Ni 10%, Cr 18%
	316L: Ni 10%~14%
	430: Cr16%6~18%
Outer Diameter	10-1000mm
Thicknesse	1-100mm
Lengthe	6m or as customers' request
Tolerancee	a)Outer Diameter:+/-0.2mm
	b)Thickness:+/-0.02mm
	c)Length:+/- 5mm
Surface	180G,240G,320G Satin /Hairline 400G, 600G Mirror finish
Application	handrail, railing, staircase, weld mesh screen, door, window, balcony, fence,bench, furniture, etc
Test	Squash test, extended test, water pressure test, crystal rot test, heattreatment, NDT
chemicalcompositionof Material	Material composition	201	202	304	316	316L	430
	C	<=0.15	<=0.15	<=0.08	<=0.08	<=0.035	<=0.12
	Si	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00
	Mn	5.5-7.5	7.5-10	<=2.00	<=2.00	<=2.00	<=1.00
	P	<=0.06	<=0.06	<=0.045	<=0.045	<=0.045	<=0.040
	S	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030
	Cr	13-15	14-17	18-20	16-18	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10.0-14.0	10.0-14.0	**
	Mo	**	**	**	**	2.0-3.0	**
round tube size	12.7x1.0 , 15.8x1.2, 19.1x1.2, 25.4x1.2
square tube	25.4x25.4x1.2 ,25.4x25.4x2.0 , 31.8x31.8x1.2 ,38.1x38.1x1.5
Rectangular tube	40x20x1.5 , 50x25x1.5

Product Advantage

Stainless steel welded pipe in the production process, the pipe will be uniformly squeezed, and then through the online bright solution annealing, the surface becomes very smooth, and the smooth surface is not easy to scale, with the function of anti-scaling. This is conducive to heat dissipation and does not require frequent cleaning, saving money and effort. Secondly, when welding pipes, the deep-processed products of the plate have the advantage of uniform wall thickness, and can also be arbitrarily measured with high accuracy. Third, the stainless steel material has the characteristics of corrosion resistance and has a long service life.

Product Apply

The purpose of stainless steel industrial welded pipe is: to transport low pressure corrosive medium; Pipes for conveying water, oil, air, heating hot water, gas, steam and other general low pressure fluids and other purposes; Used for car, furniture, hotel decoration and other mechanical parts and structural parts. It is used for conveying low pressure fluid such as sewage, gas, air, heating steam and other purposes. It is a straight seam welded steel pipe for mine air pressure, drainage and shaft gas discharge.
