Product Description

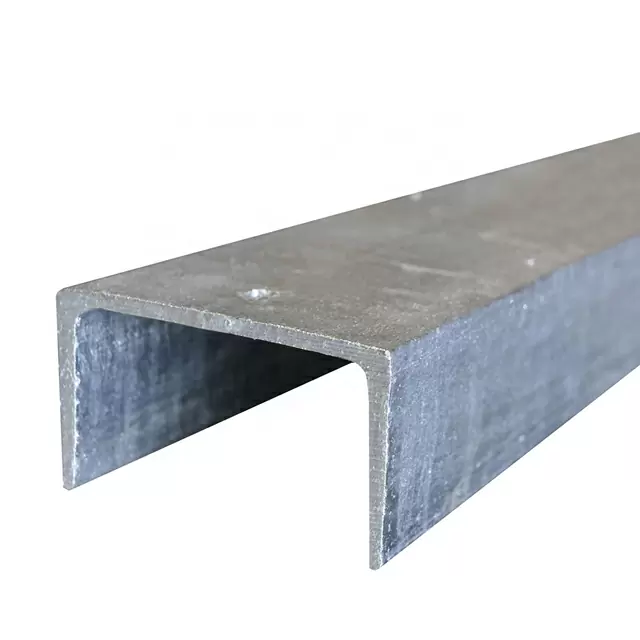

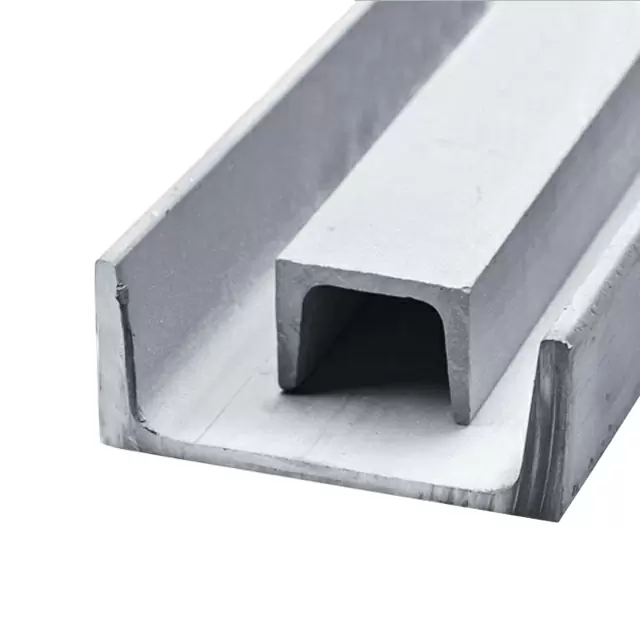

Stainless Steel U Channel：
Stainless steel channel steel is a long steel strip with a grooved section. Same as I-beam, stainless steel channel steel can also be divided into ordinary channel steel and light channel steel. The model and specification are also expressed by waist height (h) × Leg width (b) × Waist thickness (d) expressed in mm, such as 120 × fifty-three × 5 Channel steel, that is, round steel with waist height of 120mm, shall be distinguished by adding a, b, c, etc. to the right of the model.
Surface
Product Parameter
|
Stainless Steel grade |
|||||||
|
Grade |
Chemical composition |
||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Ni |
Cr |
|
|
201 |
0.15 |
1.00 |
5.5-7.5 |
0.5 |
0.03 |
3.50-5.50 |
16.00-18.00 |
|
202 |
0.15 |
1.00 |
7.5-10.0 |
0.5 |
0.03 |
4.00-6.00 |
17.00-19.00 |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-12.00 |
18.00-20.00 |
|
309 |
0.2 |
1.00 |
2.00 |
0.04 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
309S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
310 |
0.25 |
1.50 |
2.00 |
0.04 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
310S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316Ti |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
2205 |
0.03 |
1.00 |
2.00 |
0.03 |
0.02 |
4.50-6.50 |
22.00-23.00 |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.6 |
11.50-13.50 |
|
430 |
0.12 |
0.12 |
1.00 |
0.04 |
0.03 |
0.6 |
16.00-18.00 |
Product Advantage
1. Simple structure, cheap cost.
The tube bundle of stainless steel U-shaped tube can be freely telescoped, and can be drawn from the shell for easy maintenance and cleaning.
2.The heat compensation performance of the tube bundle is good, and the thermal stress will not be caused by the temperature difference between the tubes and shells.
3.The pipe is double pipe, the process is long, the flow rate is high, and the heat transfer performance is good.
4.Strong pressure bearing capacity.
Product Apply
1. Stainless steel U-shaped tube is a drying device chemically and a connecting device physically.
2. Stainless steel U-shaped tube can be used to dry gases and collect low boiling point liquids. In addition, in the stainless steel U-shaped tube into the desiccant, you can dry through the gas, in addition, in the stainless steel U-shaped tube into the white anhydrous CuSO4 powder, you can pass the gas to check whether there is water operation, anhydrous copper sulfate is unstable, easy to absorb water, and the formation of stable pentahydrate copper sulfate CuSO4·5H2O, blue, The color change can prove that the gas contains water vapor, and the reaction is rapid and sensitive. A beaker wider than it is placed under the U-shaped tube, and the beaker is filled with a mixture of ice water or ice salt, which can cool the vapor of some low-boiling liquid, so that it can be liquefied and collected, so the U-shaped tube can be used to cool to collect some low-boiling liquid, such as SO3, NO2, C2H5OC2H5 and so on.
Packing And Shipping
Standard export packing for stainless steel sheet：
1. Surface polish
2. Bundle package
3. Wooden case,wooden pallet package
4. Container or bulk
5. Special according to customer's request
