Wholesale,China Stainless Steel Square Tube Factory,Manufacturers,Supplier

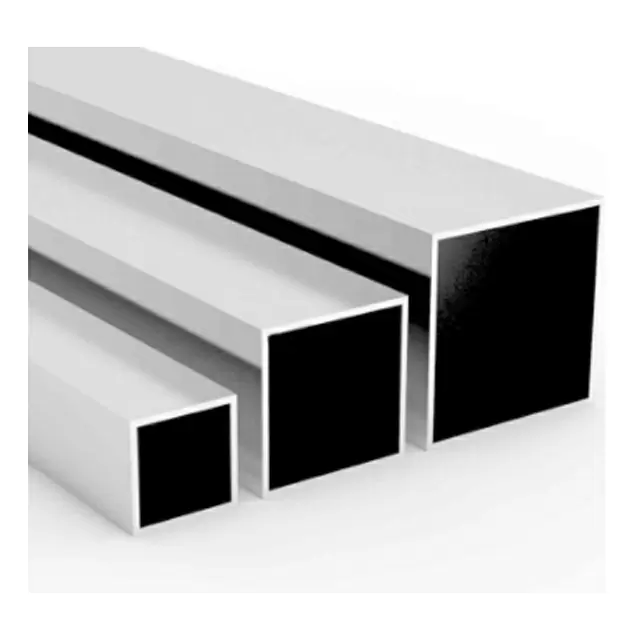

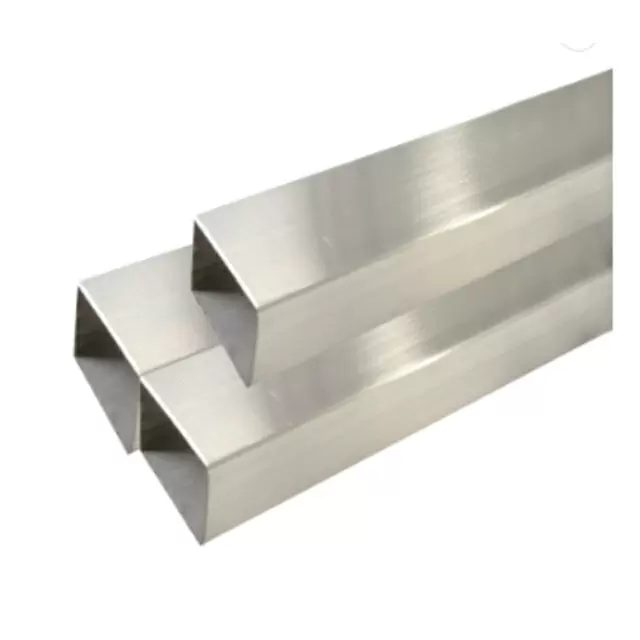

Stainless Steel Square Tube

Stainless Steel Square Tube: Stainless steel square tube is a hollow strip of steel, because the section is square rectangular so called square tube, bending, torsion strength at the same time, light weight.

Details

Product Description

Stainless Steel Square Tube:

Square tube is a kind of rectangular tube, contained in the rectangular tube. A large number of pipelines used to transport fluids, such as oil, natural gas, water, gas, steam, etc., in addition, in the bending, torsional strength at the same time, light weight, so it is also widely used in the manufacture of mechanical parts and engineering structures.

Surface

Product Parameter

Name	stainless Steel Seamless & Welded Tube &Pipe.
Standard	ASTM A554,A249,A269 and A270
Material Grade	201: Ni 0.8%~1%
	202: Ni 3.5%~4.5%
	304: Ni 8%, Cr 18%
	316: Ni 10%, Cr 18%
	316L: Ni 10%~14%
	430: Cr16%6~18%
Outer Diameter	10-1000mm
Thicknesse	1-100mm
Lengthe	6m or as customers' request
Tolerancee	a)Outer Diameter:+/-0.2mm
	b)Thickness:+/-0.02mm
	c)Length:+/- 5mm
Surface	180G,240G,320G Satin /Hairline 400G, 600G Mirror finish
Application	handrail, railing, staircase, weld mesh screen, door, window, balcony, fence,bench, furniture, etc
Test	Squash test, extended test, water pressure test, crystal rot test, heattreatment, NDT
chemicalcompositionof Material	Material composition	201	202	304	316	316L	430
	C	<=0.15	<=0.15	<=0.08	<=0.08	<=0.035	<=0.12
	Si	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00
	Mn	5.5-7.5	7.5-10	<=2.00	<=2.00	<=2.00	<=1.00
	P	<=0.06	<=0.06	<=0.045	<=0.045	<=0.045	<=0.040
	S	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030
	Cr	13-15	14-17	18-20	16-18	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10.0-14.0	10.0-14.0	**
	Mo	**	**	**	**	2.0-3.0	**
round tube size	12.7x1.0 , 15.8x1.2, 19.1x1.2, 25.4x1.2
square tube	25.4x25.4x1.2 ,25.4x25.4x2.0 , 31.8x31.8x1.2 ,38.1x38.1x1.5
Rectangular tube	40x20x1.5 , 50x25x1.5

Product Advantage

Stainless steel square pipe quality superior, health, environmental protection, economic and practical. The thin-walled pipeline and the new reliable, simple and convenient connection method have been successfully developed. Heat treatment: bright solid solution under the protection of reducing gas, mechanical properties analysis: the elongation Ψ strength δb, and hardness HRB(80~90) can be adjusted and controlled.

Product Apply

The use of square pipe: there are construction, machinery manufacturing, steel construction and other projects, shipbuilding, solar power generation bracket, steel structure engineering, power engineering, power plant, agriculture and chemical machinery, glass curtain wall, automobile chassis, airport, boiler construction, highway railings, housing construction, pressure vessels, oil storage tanks, Bridges, power station equipment.
