Product Description

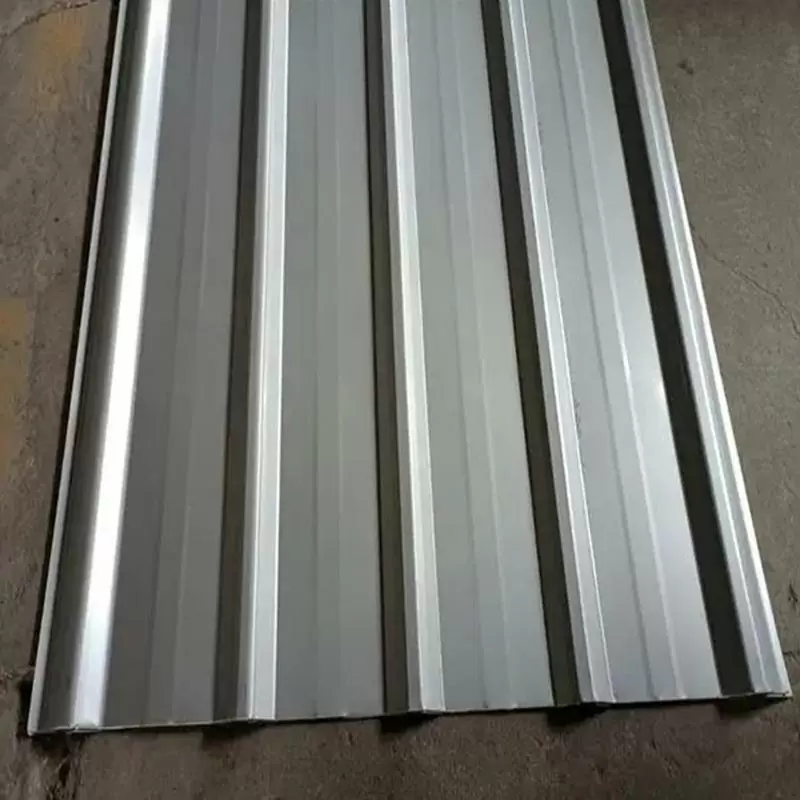

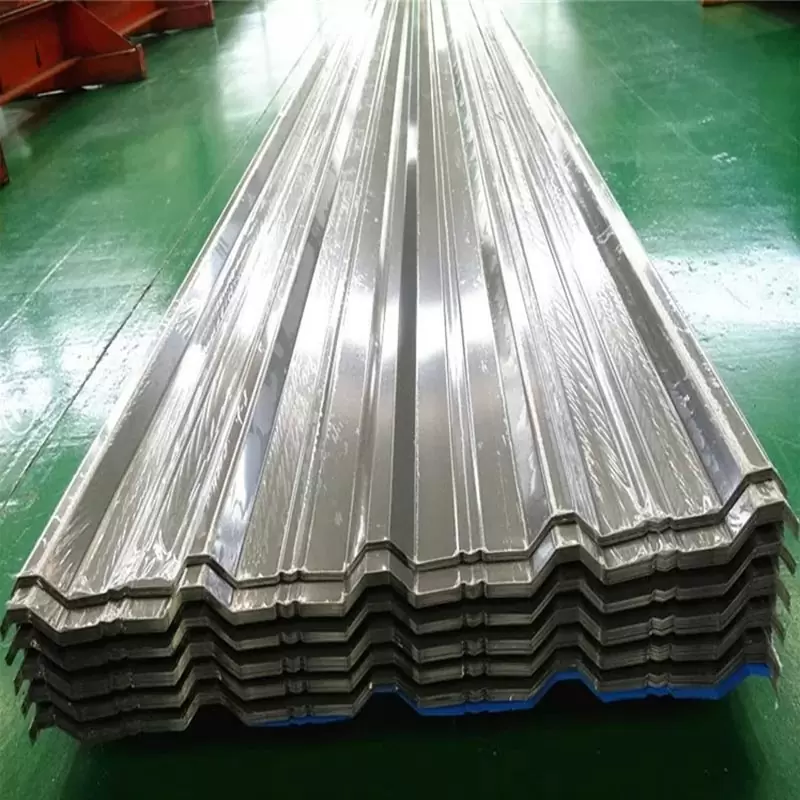

Stainless Steel Corrugated Sheet: The stainless steel corrugated plate is pressed by a fully automatic assembly line, which is light in weight, high in strength, rich in color, convenient and fast in construction, earthquake resistant, fireproof, rainproof, long in life, maintenance free, etc. Because of its good plasticity, it can better meet the requirements of various building shapes. The stainless steel corrugated plate can be used for more than 10 years, reducing the labor and material costs of replacing ordinary color steel tiles, and is an ideal substitute for ordinary color steel tiles.
Surface
Product Parameter
|
Stainless Steel grade |
|||||||
|
Grade |
Chemical composition |
||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Ni |
Cr |
|
|
201 |
0.15 |
1.00 |
5.5-7.5 |
0.5 |
0.03 |
3.50-5.50 |
16.00-18.00 |
|
202 |
0.15 |
1.00 |
7.5-10.0 |
0.5 |
0.03 |
4.00-6.00 |
17.00-19.00 |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-12.00 |
18.00-20.00 |
|
309 |
0.2 |
1.00 |
2.00 |
0.04 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
309S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
310 |
0.25 |
1.50 |
2.00 |
0.04 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
310S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316Ti |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
2205 |
0.03 |
1.00 |
2.00 |
0.03 |
0.02 |
4.50-6.50 |
22.00-23.00 |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.6 |
11.50-13.50 |
|
430 |
0.12 |
0.12 |
1.00 |
0.04 |
0.03 |
0.6 |
16.00-18.00 |
Product Advantage
1.Roll formed by roll forming machines, thethickness and color can be different
2. Easy installation
3.High strength
4. More economic (low cost)
5.Raw materials: Cold-rolled steel, galvanized steel, galvanized pre-painted sheet and aluminum sheet
Product Apply
1.They are widely use as the wall or roof of factory, warehouse, garage, exhibition center and cinema..
2.A fluted profile makes it suitable for many applications where flat sheet wouldnot normally be considered. The longitudinal flutes provide rigidity along the length of the sheet while retaining full flexibility across the width.
3. Used on exterior and interior walls, roofs and soffits and on straight or curved surfaces with flutes horizontal or vertical.
Packing And Shipping
Standard export packing for stainless steel sheet：
1. Surface polish
2. Bundle package
3. Wooden case,wooden pallet package
4. Container or bulk
5. Special according to customer's request
