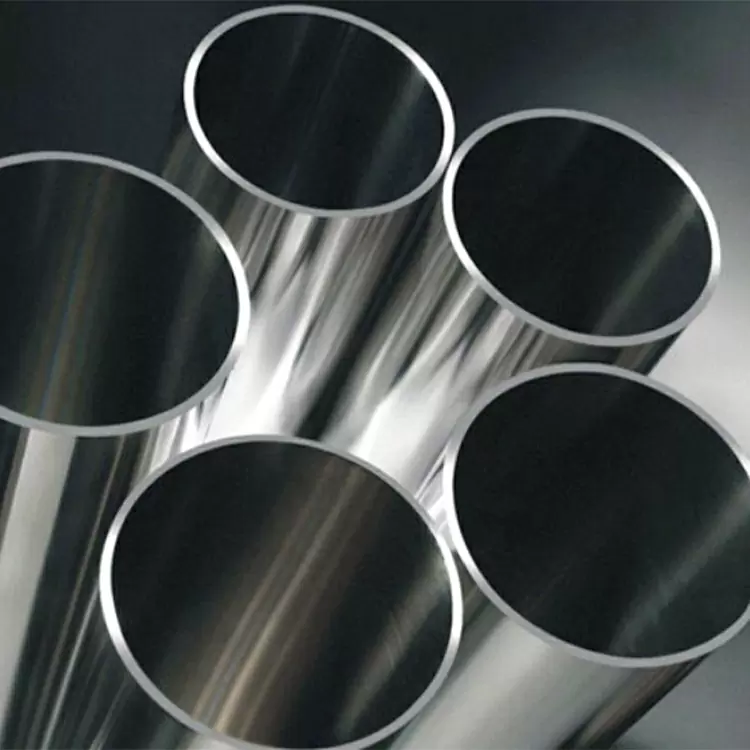

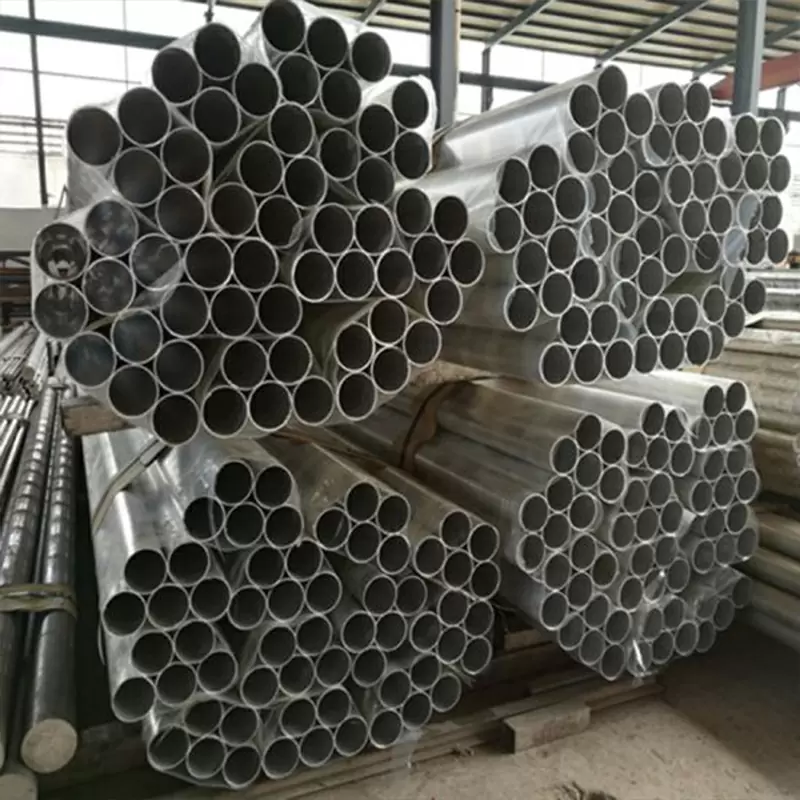

Stainless Steel Bright Tube

Stainless Steel Bright Tube: Stainless steel bright pipe is a kind of steel pipe with excellent mechanical process performance and can withstand high pressure, especially suitable for hydraulic machinery and auto parts air conditioning refrigeration industry.

Details

Product Description

Stainless Steel Bright Tube:

Stainless steel bright tube is a kind of refined steel pipe that has been cold drawn or cold rolled, non-oxidation bright heat treatment and non-destructive testing. The inner wall of the steel pipe is brushed with special equipment and cleaned under high pressure. The antirust oil on the steel pipe is used for antirust treatment, and the covers at both ends are used for dust-proof treatment. The inner and outer walls of the steel pipe have high precision and high finish. After heat treatment, the steel pipe has no oxide layer and the inner wall is clean.

Surface

Product Parameter

Name	stainless Steel Seamless & Welded Tube &Pipe.
Standard	ASTM A554,A249,A269 and A270
Material Grade	201: Ni 0.8%~1%
	202: Ni 3.5%~4.5%
	304: Ni 8%, Cr 18%
	316: Ni 10%, Cr 18%
	316L: Ni 10%~14%
	430: Cr16%6~18%
Outer Diameter	10-1000mm
Thicknesse	1-100mm
Lengthe	6m or as customers' request
Tolerancee	a)Outer Diameter:+/-0.2mm
	b)Thickness:+/-0.02mm
	c)Length:+/- 5mm
Surface	180G,240G,320G Satin /Hairline 400G, 600G Mirror finish
Application	handrail, railing, staircase, weld mesh screen, door, window, balcony, fence,bench, furniture, etc
Test	Squash test, extended test, water pressure test, crystal rot test, heattreatment, NDT
chemicalcompositionof Material	Material composition	201	202	304	316	316L	430
	C	<=0.15	<=0.15	<=0.08	<=0.08	<=0.035	<=0.12
	Si	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00	<=1.00
	Mn	5.5-7.5	7.5-10	<=2.00	<=2.00	<=2.00	<=1.00
	P	<=0.06	<=0.06	<=0.045	<=0.045	<=0.045	<=0.040
	S	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030	<=0.030
	Cr	13-15	14-17	18-20	16-18	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10.0-14.0	10.0-14.0	**
	Mo	**	**	**	**	2.0-3.0	**
round tube size	12.7x1.0 , 15.8x1.2, 19.1x1.2, 25.4x1.2
square tube	25.4x25.4x1.2 ,25.4x25.4x2.0 , 31.8x31.8x1.2 ,38.1x38.1x1.5
Rectangular tube	40x20x1.5 , 50x25x1.5

Product Advantage

1.Good corrosion resistance

2.Hygienic and reliable, no need to worry about red and green water

3.Due to the light weight of stainless steel bright tube, easy operation and construction, greatly reducing the cost.

Product Apply

In our daily life, almost all places that use metal materials have stainless steel bright rods, such as stainless steel handrails, stainless steel guardrail, stainless steel anti-theft doors and Windows, etc., which are made of stainless steel decorative pipes. There are also some display stands used on the market, as well as stainless steel table feet, stainless steel chairs, etc., although some products are not based on stainless steel decorative pipes, there are also many stainless steel decorative pipe accessories.
