Product Description

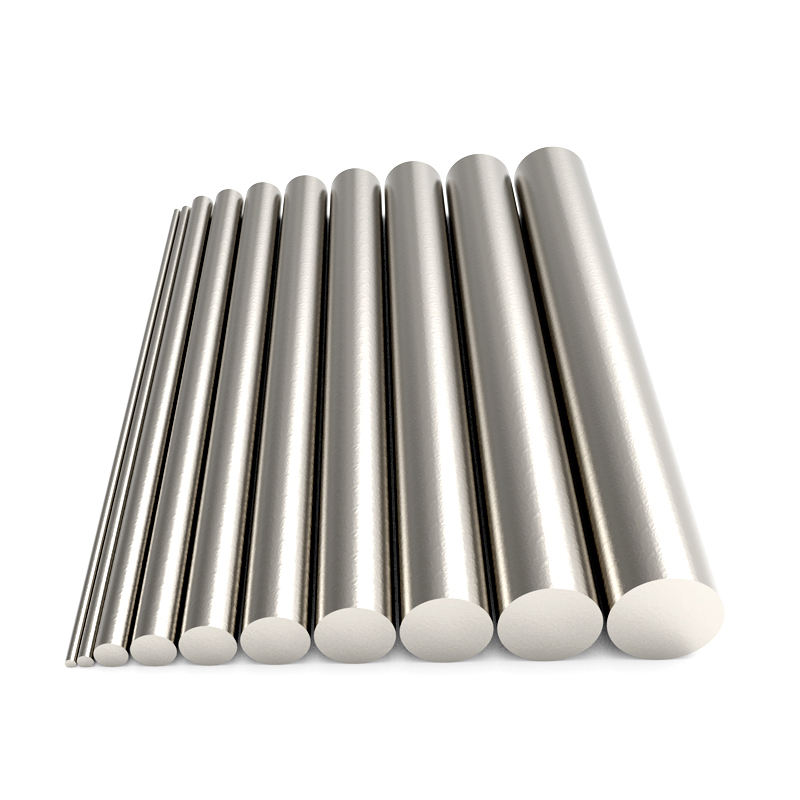

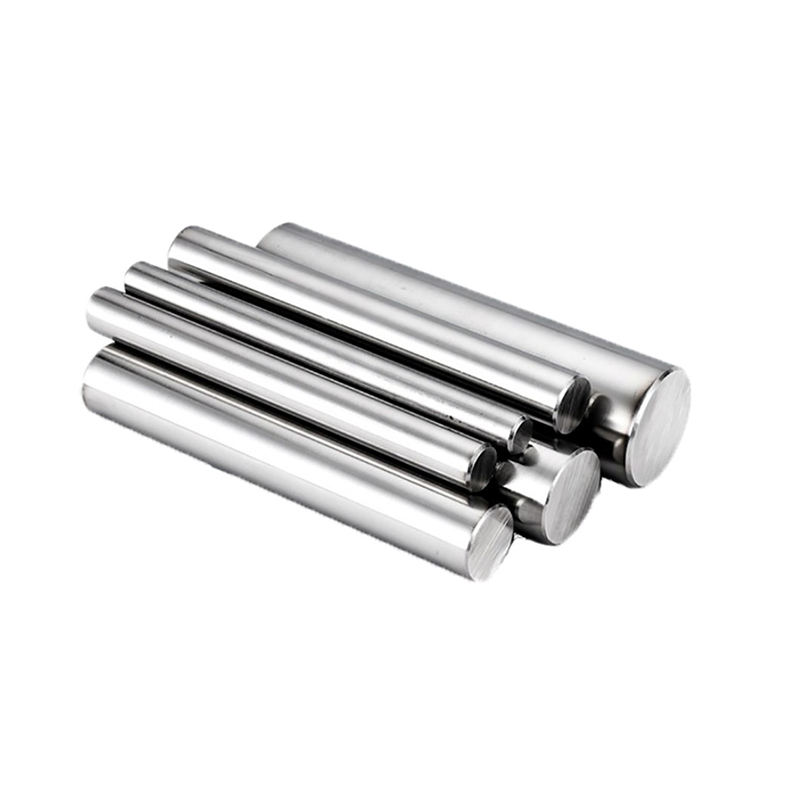

316 Stainless Steel Bar:
316 stainless steel is very versatile; Not only does it have strong forming and welding properties, but it also has the ability to fold or roll, so it can be easily translated into many applications. In addition, 316 stainless steel tends to be more durable than 304 stainless steel in high temperature environments.
316L Stainless Steel Bar:
316L is a stainless steel material that contains a certain amount of Mo element. The performance of this steel has exceeded 301 steel and 304 stainless steel. Even in a high temperature environment, it will not be subjected to high temperature erosion and corrosion. It can also be used in Marine environments and will not be polluted by some outside air, causing corrosion.
Surface
Product Parameter
|
Stainless Steel grade |
|||||||
|
Grade |
Chemical composition |
||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Ni |
Cr |
|
|
201 |
0.15 |
1.00 |
5.5-7.5 |
0.5 |
0.03 |
3.50-5.50 |
16.00-18.00 |
|
202 |
0.15 |
1.00 |
7.5-10.0 |
0.5 |
0.03 |
4.00-6.00 |
17.00-19.00 |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-12.00 |
18.00-20.00 |
|
309 |
0.2 |
1.00 |
2.00 |
0.04 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
309S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
310 |
0.25 |
1.50 |
2.00 |
0.04 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
310S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316Ti |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
2205 |
0.03 |
1.00 |
2.00 |
0.03 |
0.02 |
4.50-6.50 |
22.00-23.00 |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.6 |
11.50-13.50 |
|
430 |
0.12 |
0.12 |
1.00 |
0.04 |
0.03 |
0.6 |
16.00-18.00 |
Product Advantage
316
316 stainless steel is easy to weld through all commercial processes.
Sometimes referred to by industry professionals as Marine grade stainless steel because of its incredible resistance to pitting.
Due to its unique composition, it can be used in applications where non-magnetic metals are required.
316L
316 stainless steel contains molybdenum, low carbon content, in the Marine and chemical environment in the point corrosion resistance is much better than 304 stainless steel.
Product Apply
316
Food preparation equipment, Marine, coastal construction, Marine accessories, woven screens for quarrying and water filtration, heat exchangers, jet engine parts, etc.
316L
Food preparation equipment, pharmaceutical, marine, boat fittings, and medical implants (i.e- orthopaedic implants).
Packing And Shipping
Standard export packing for stainless steel sheet：
1. Surface polish
2. Bundle package
3. Wooden case,wooden pallet package
4. Container or bulk
5. Special according to customer's request
