Product Description

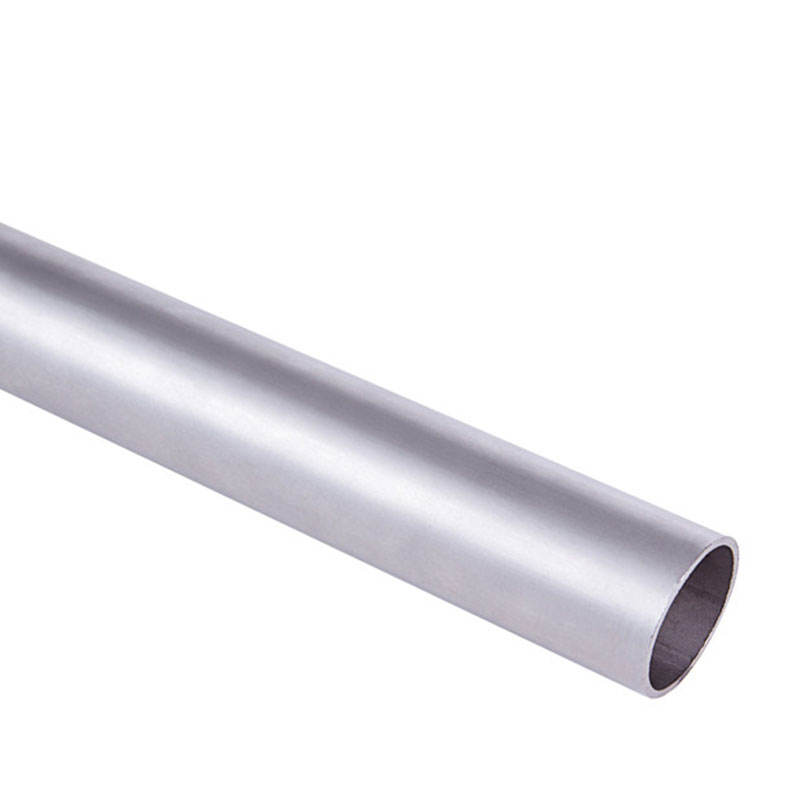

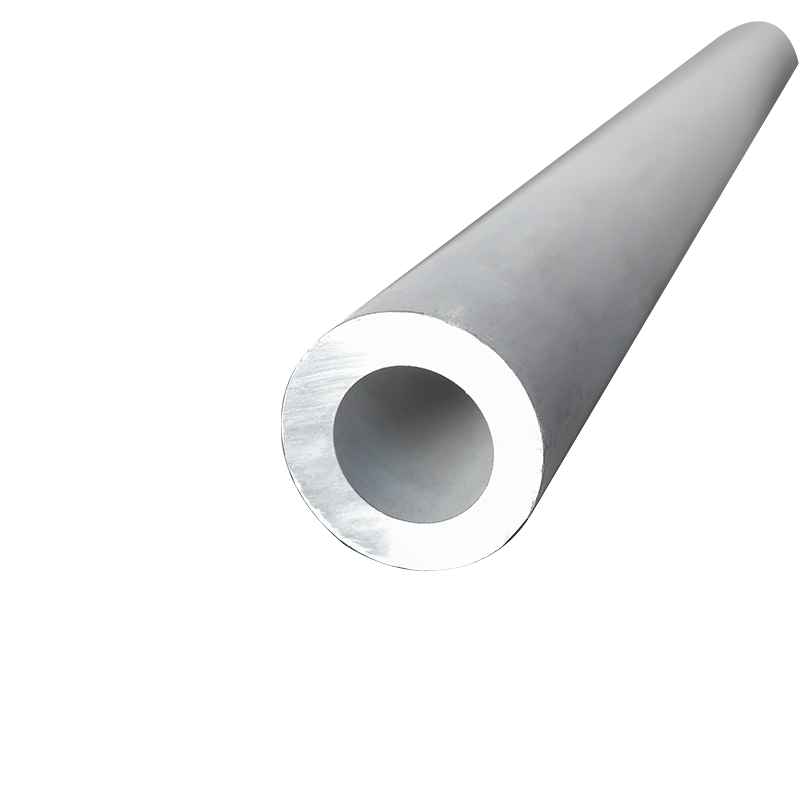

316/316L Stainless Steel Pipe:
316 Stainless Steel Pipe
Grade 316 stainless steel has a molybdenum grade that makes it more resistant to corrosive abuse than grade 304. This is particularly evident in high-sulfur, hydrochloric, formic, and tartaric acid environments, where pitting is often persistent.
316L Stainless Steel Pipe
316L has a wide range of applications in the chemical industry because of its excellent corrosion resistance, 316L is also a derivative of 18-8 austenitic stainless steel, adding 2 ~ 3% Mo element. On the basis of 316L, many steel grades are also derived, such as 316Ti after adding a small amount of Ti, 316N after adding a small amount of N, and 317L is derived from increasing Ni and Mo content.
Surface
Product Parameter
|
Stainless Steel grade |
|||||||
|
Grade |
Chemical composition |
||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Ni |
Cr |
|
|
201 |
0.15 |
1.00 |
5.5-7.5 |
0.5 |
0.03 |
3.50-5.50 |
16.00-18.00 |
|
202 |
0.15 |
1.00 |
7.5-10.0 |
0.5 |
0.03 |
4.00-6.00 |
17.00-19.00 |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-12.00 |
18.00-20.00 |
|
309 |
0.2 |
1.00 |
2.00 |
0.04 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
309S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
310 |
0.25 |
1.50 |
2.00 |
0.04 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
310S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316Ti |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
2205 |
0.03 |
1.00 |
2.00 |
0.03 |
0.02 |
4.50-6.50 |
22.00-23.00 |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.6 |
11.50-13.50 |
|
430 |
0.12 |
0.12 |
1.00 |
0.04 |
0.03 |
0.6 |
16.00-18.00 |
Product Advantage
316
High corrosion resistance: 316 stainless steel contains molybdenum element, can show better corrosion resistance in chloride environment, so it is widely used in Marine, chemical, pharmaceutical and other fields.
Good high temperature resistance: The high temperature strength and oxidation resistance of 316 stainless steel are better than 304 stainless steel, and can maintain stable performance in high temperature environment.
316L
Excellent heat and corrosion resistance, good mechanical strength.
Added Mo, so its corrosion resistance, atmospheric corrosion resistance and high temperature strength is particularly good, can be used under harsh conditions;
Excellent work hardening (non-magnetic).
Excellent high-temperature strength. It has good strength, plasticity, toughness, cold formability and low temperature performance.
Product Apply
316
The main uses of 316 stainless steel are pulp and paper equipment heat exchangers, dyeing equipment, pipelines, coastal area building external materials.
316L
316L stainless steel is often used in pulp and paper equipment heat exchangers, dyeing equipment, film washing equipment, pipelines, coastal area building external materials, as well as high-end watch chains, watch cases, etc.
Packing And Shipping
Standard export packing for stainless steel sheet：
1. Surface polish
2. Bundle package
3. Wooden case,wooden pallet package
4. Container or bulk
5. Special according to customer's request
