Product Description
316/316L Stainless Steel Angle：

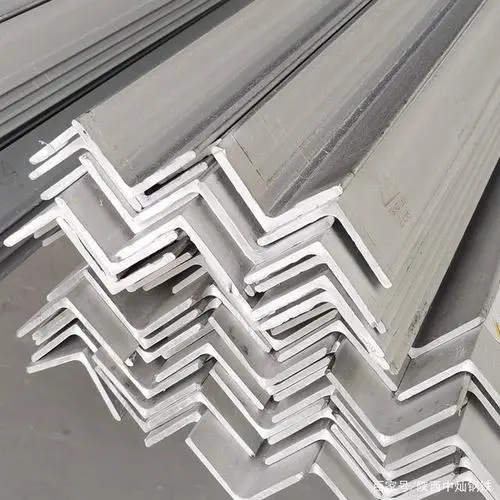

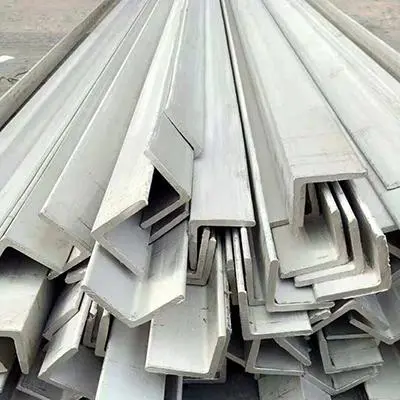

Excellent pitting resistance, high temperature resistance, excellent creep resistance. Stainless steel Angle steel is a long steel bar with two vertical angles to each other. There are equal side stainless steel Angle and unequal side stainless steel Angle. The two sides of equilateral stainless steel Angle steel are equal in width. Its specifications are expressed in millimeters of side width × side width × side thickness. Hot rolled equal edge stainless steel Angle steel specifications for 2#-20#.
Surface
Product Parameter
|
Stainless Steel grade |
|||||||
|
Grade |
Chemical composition |
||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Ni |
Cr |
|
|
201 |
0.15 |
1.00 |
5.5-7.5 |
0.5 |
0.03 |
3.50-5.50 |
16.00-18.00 |
|
202 |
0.15 |
1.00 |
7.5-10.0 |
0.5 |
0.03 |
4.00-6.00 |
17.00-19.00 |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
8.00-12.00 |
18.00-20.00 |
|
309 |
0.2 |
1.00 |
2.00 |
0.04 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
309S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
|
310 |
0.25 |
1.50 |
2.00 |
0.04 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
310S |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
316Ti |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
|
2205 |
0.03 |
1.00 |
2.00 |
0.03 |
0.02 |
4.50-6.50 |
22.00-23.00 |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.6 |
11.50-13.50 |
|
430 |
0.12 |
0.12 |
1.00 |
0.04 |
0.03 |
0.6 |
16.00-18.00 |
Product Advantage
(1) The appearance of cold-rolled products is good and beautiful;
(2) Due to the addition of Mo, corrosion resistance, especially excellent pitting resistance;
(3) Excellent high temperature strength
(4) Excellent work hardening (weak magnetic properties after processing)
(5) solid solution state non-magnetic.
Product Apply
Pulp and paper equipment Heat exchangers, dyeing equipment, film washing equipment, pipelines, materials for the exterior of buildings in coastal areas, as well as high-end watch chains, watch cases and other purposes.
Packing And Shipping
Standard export packing for stainless steel sheet：
1. Surface polish
2. Bundle package
3. Wooden case,wooden pallet package
4. Container or bulk
5. Special according to customer's request
